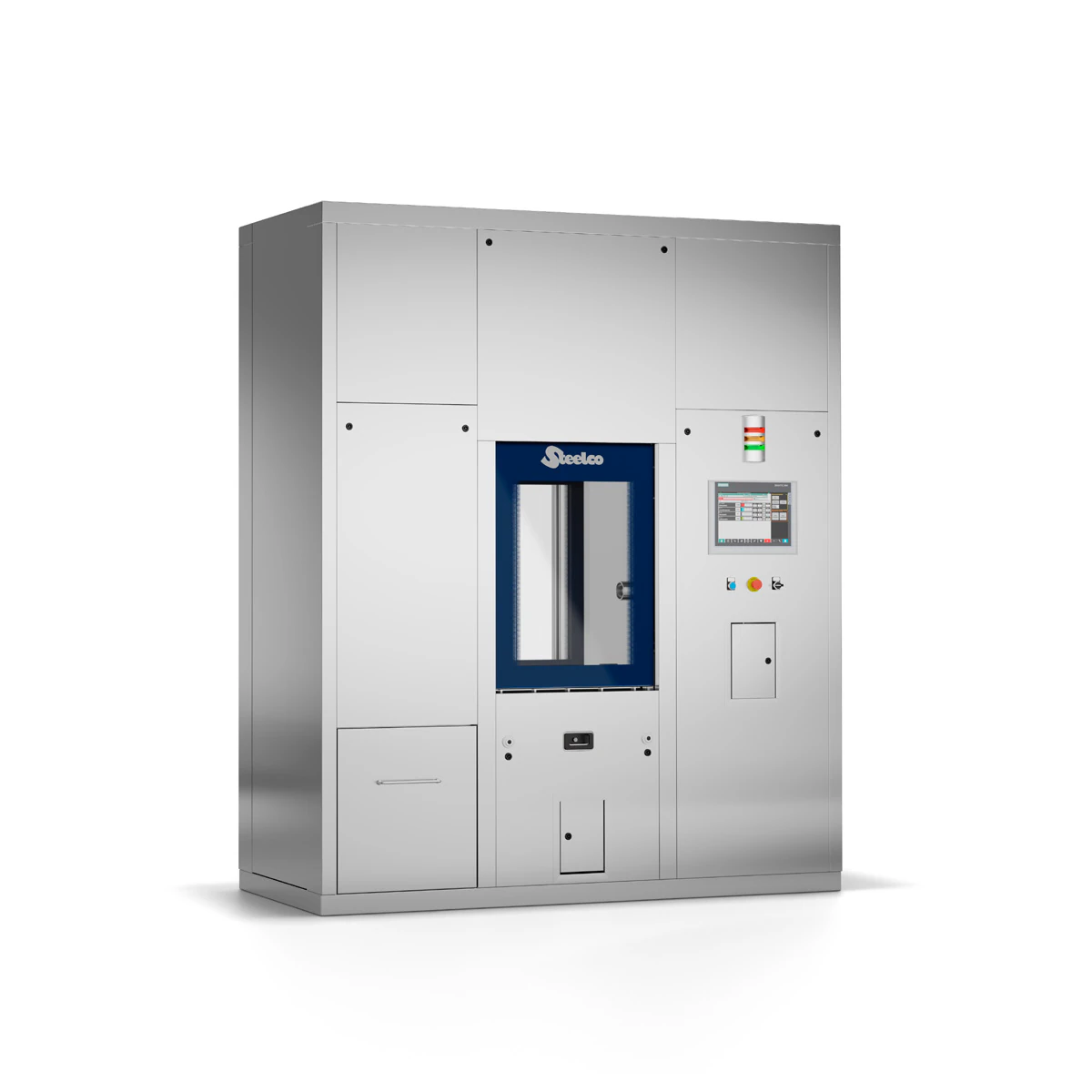

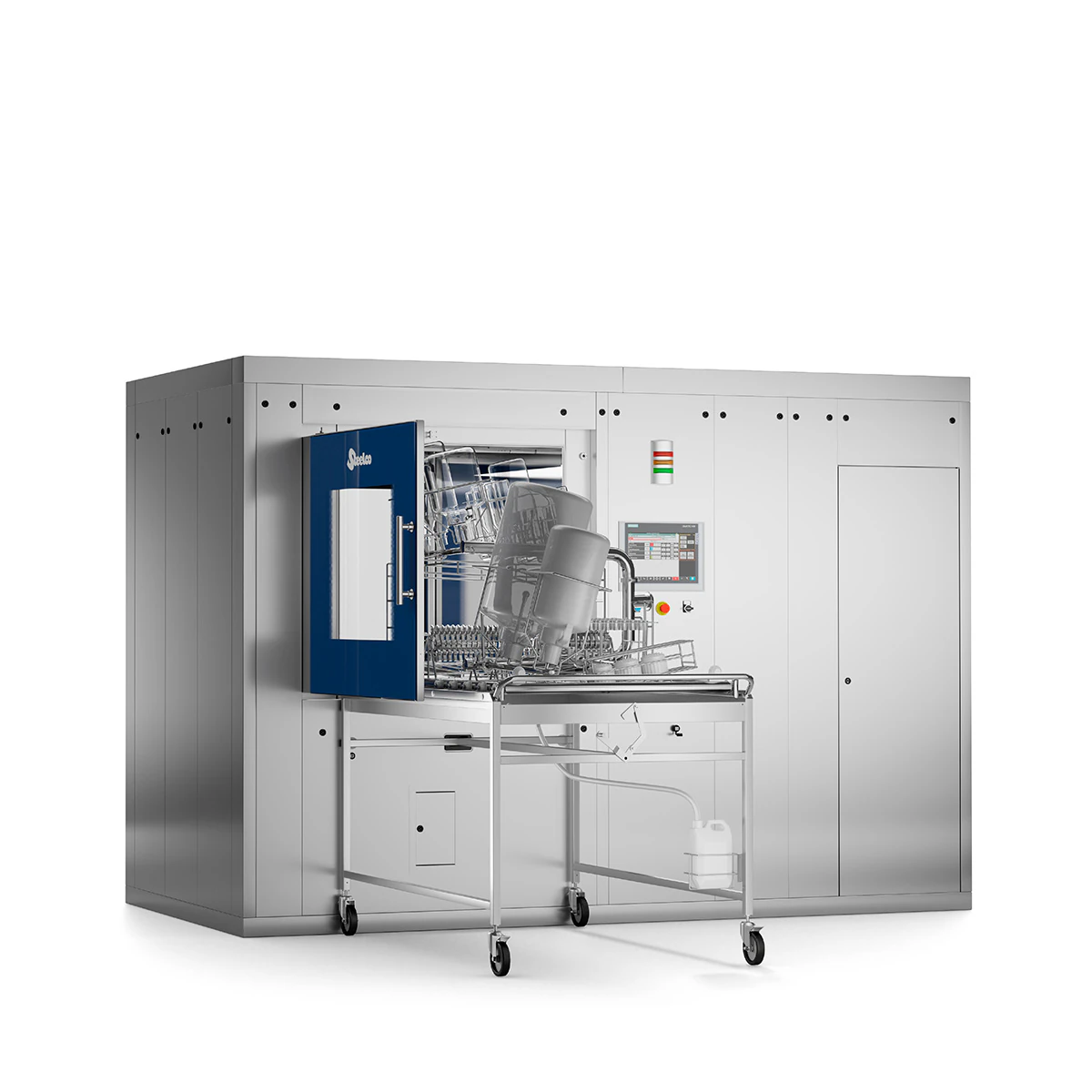

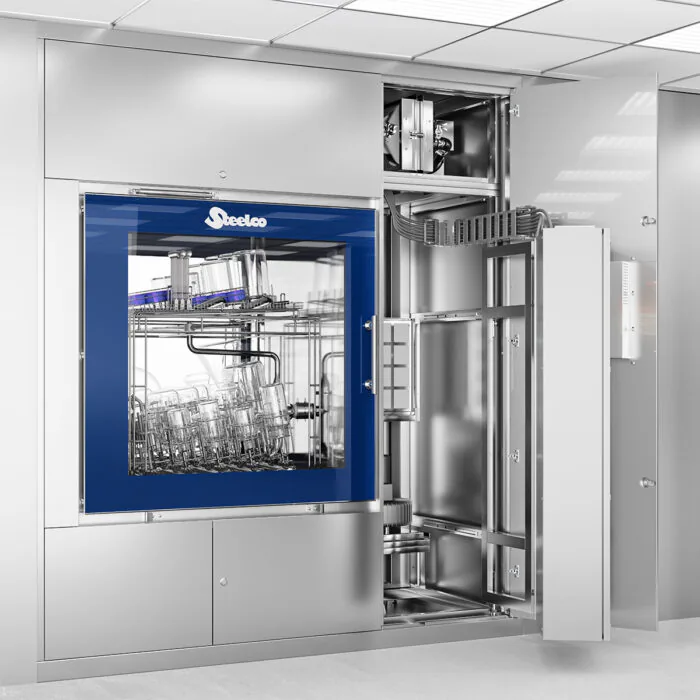

Washing/Drying machines executed as single door or pass-through double door version, with automatic motorized opening. Vertical sliding doors made by HST tempered glass.
High performance and production capacity for pharmaceutical industry
The needs of the pharmaceutical field are focused to reach the highest level of performance and production capacity within the very high industrial security standards in order to minimize the risk of contamination. Steelco answers to these needs with a large range of washing systems and is able to support the pharmaceutical company from the system design to the customization of accessories, installation design, validation, support and maintenance. Steelco develops customized solutions thanks to a system based on compatible modular units that allow to achieve high quality and performance system. World leading pharmaceutical companies rely on Steelco washing and drying systems.
Exceed industry standards
> The planning and the production of our washing and
drying systems is based on standards and guidelines
recognized both worldwide as well as in the final
installation country:
- GAMP
- cGMP
- A.S.M.E. BPE-2009
- MCA
- ISPE baseline
- FDA
- ISO9000
- 21CFR part 11
• Single or double door versions with sliding doors to reduce the need of space
• HST tempered glass doors for visual inspection and for heat and noise insulation
• Cross contamination barriers to prevent clean area contamination and excessive air loss
• Drying system with two independent channels for chamber and load. (LC80 PHARMA)
• HEPA filters.
• Smooth and completely drainable surfaces, orbital welding, L/D Ratio of < 4, chamber and piping slopes >2%
• Powerful sanitary main pump
• Low power and consumption
• Choice for automation systems: Siemens Saia / Hakko Rockwell – Allen Bradley
• BPE compliant design and components
• GAMP compliant documentation and programming
• Rigorous controls of the parameters to meet the needs of the industry
• Drain cooling system is available to reduce the temperature of the drained water
